street3890 Posted May 29, 2008 Author Report Share Posted May 29, 2008 Ok, i get that but where are they (solenoids) and how do u replace them? Details, PLEASE. I know i may be annoying but i love my car and i want it to run the right way. Quote Link to comment Share on other sites More sharing options...
enginph Posted May 29, 2008 Report Share Posted May 29, 2008 They are below EGR, driver side of it. Quote Link to comment Share on other sites More sharing options...
street3890 Posted May 29, 2008 Author Report Share Posted May 29, 2008 That doesn't really help lol im sorry...Can u explain where? Quote Link to comment Share on other sites More sharing options...
street3890 Posted May 29, 2008 Author Report Share Posted May 29, 2008 I'm trying to follow the diagram i just can't, i need one of u guys who know how to follow it, and who know the problem do this lol Quote Link to comment Share on other sites More sharing options...
SteveSter Posted May 29, 2008 Report Share Posted May 29, 2008 Use this and follow the vacuum line to it. The EGR is the big shiny gold colored thing with a sensor on the top and a vac line coming out of it. The just look to see whats holding it in, remove the bolts and change. Lol sorry I just dont see any other way of explaining it. -Steven Quote Link to comment Share on other sites More sharing options...
street3890 Posted May 29, 2008 Author Report Share Posted May 29, 2008 So am i because i can't, i dont understand this shit, this is for the miller cycle engine right? lol Someone one take a drive to my house lol Quote Link to comment Share on other sites More sharing options...

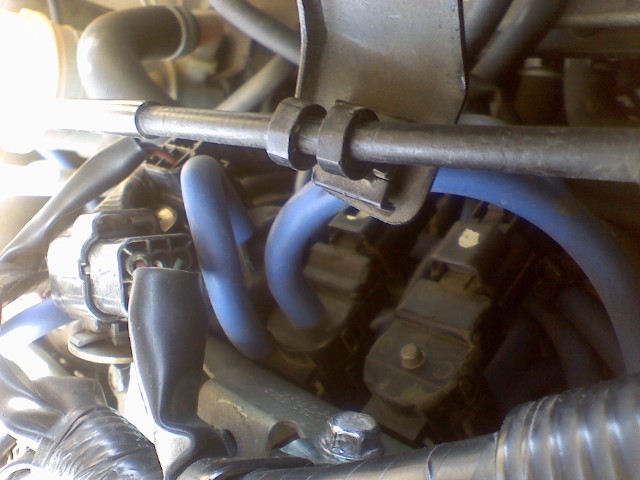

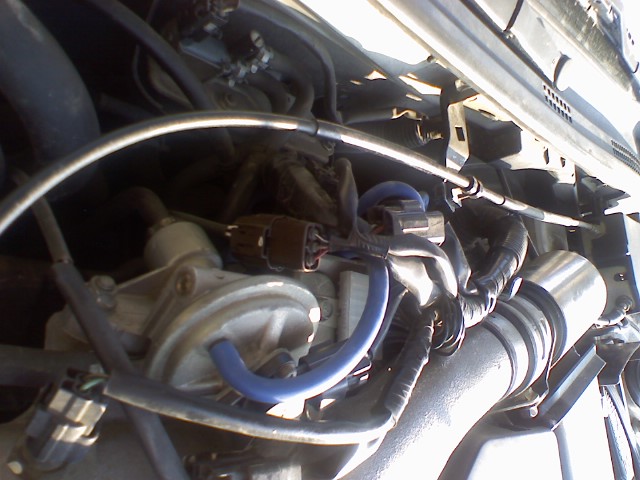

Frankzao Posted May 29, 2008 Report Share Posted May 29, 2008 Here are some pics: First stand on the passenger side of the car and find this: [attachmentid=1035] See the throttle cable support? [attachmentid=1036] The solenoid bank is located below it. See the light blue vacuum lines? Those two are to the ABV solenoid valve (vent) and air filter. The one on the right is the ABV solenoid valve (vacuum). Quote Link to comment Share on other sites More sharing options...
street3890 Posted May 29, 2008 Author Report Share Posted May 29, 2008 Thanks, how do u you remove them? Quote Link to comment Share on other sites More sharing options...
latinopikachu Posted May 29, 2008 Report Share Posted May 29, 2008 there have become baked on with age and the plastic clips are brittle. i broke the bad one off and just use screwdriver to get the plastic out to put the new one in, if you don't really care you can remove them that way Quote Link to comment Share on other sites More sharing options...
street3890 Posted May 29, 2008 Author Report Share Posted May 29, 2008 How's the right way to remove them lol w/o breaking them haha Quote Link to comment Share on other sites More sharing options...
street3890 Posted May 29, 2008 Author Report Share Posted May 29, 2008 The one with the dot w/o the blue hose is the vaccum or vent? Quote Link to comment Share on other sites More sharing options...
Frankzao Posted May 29, 2008 Report Share Posted May 29, 2008 The solenoid bank is located below it. See the light blue vacuum lines? Those two are to the ABV solenoid valve (vent) and air filter. The one on the right is the ABV solenoid valve (vacuum) it has a dot. To remove, they are clipped on. They each have a clip. If you reach under it (hand btwn it and the firewall) the clip is on the motor side of the solenoid. They all mount to a metal plate. Just need to need to release the clip and pull up while holding it open. Quote Link to comment Share on other sites More sharing options...
street3890 Posted May 29, 2008 Author Report Share Posted May 29, 2008 Ok, and when they come out, i check them with the multimeter? What do i hook them to though, i know there is a positive and negative part on the meter... Quote Link to comment Share on other sites More sharing options...
Matt64341 Posted May 29, 2008 Report Share Posted May 29, 2008 It doesn't matter which side is which when you are measuring resistance. Just turn the dial on the meter to ohms which looks like Ω and put one lead of the meter on each of the two pins on the solenoid. Quote Link to comment Share on other sites More sharing options...
street3890 Posted May 29, 2008 Author Report Share Posted May 29, 2008 Ok, but i do need to remove them to check them right? Quote Link to comment Share on other sites More sharing options...
mts Posted May 29, 2008 Report Share Posted May 29, 2008 NO, you just need to unclip the harness and measure across the pins. Quote Link to comment Share on other sites More sharing options...
street3890 Posted May 29, 2008 Author Report Share Posted May 29, 2008 What pins? What harness? sorry Quote Link to comment Share on other sites More sharing options...
street3890 Posted May 29, 2008 Author Report Share Posted May 29, 2008 I think i found it!!! The second solenoid from the left, there is a hose coming out of the bottom correct? Is that supposed to be open or cut short not connecting to something? Because it's just a hose right now and it looks like it was cut in half... Quote Link to comment Share on other sites More sharing options...
street3890 Posted May 29, 2008 Author Report Share Posted May 29, 2008 The vent and air filter solenoids are reversed in your picture, the oder of mine in my car from right to left is the vaccum, filter, vent, then the other one. Quote Link to comment Share on other sites More sharing options...
street3890 Posted May 29, 2008 Author Report Share Posted May 29, 2008 That gray hose is coming from the botton of the third to left valve, and is that the right order from right to left? third from the right* Quote Link to comment Share on other sites More sharing options...

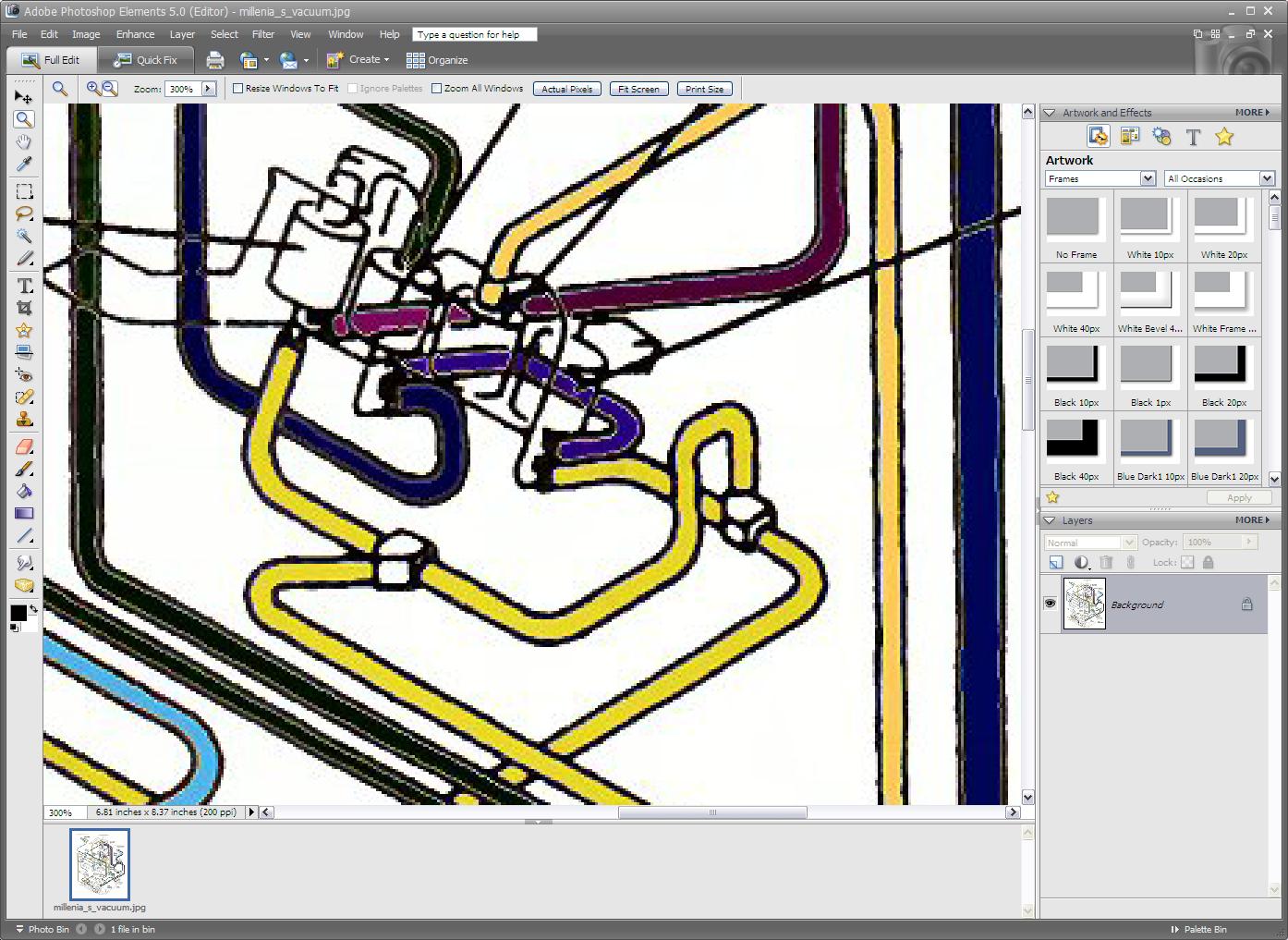

mts Posted May 29, 2008 Report Share Posted May 29, 2008 That hose should be hooked to the empty line on the solenoid. If you zoom in on the solenoid valves in the coloured drawing... there is a darker purple short line going from top connection of solenoid vent to top connection of solenoid vacuum. This is the line question.... attach it to the open line. http://www.mazdaworld.net/forums/index.php...st&p=188956 [attachmentid=1038] This might help with the electrical troubleshoot.... from the thread about troubleshooting 1540 1525 http://www.mazdaworld.net/forums/index.php...st&p=188956 Quote Link to comment Share on other sites More sharing options...
street3890 Posted May 29, 2008 Author Report Share Posted May 29, 2008 Idk man, i can't find anything back there, its hot and very tight. And its coming from the bottom. And idk what all that troubleshooting stuff means!!! Is that my problem though?!? Quote Link to comment Share on other sites More sharing options...
ing-schu@online.no Posted May 29, 2008 Report Share Posted May 29, 2008 Have you concidered to wait untill the engine has chilled? Quote Link to comment Share on other sites More sharing options...
street3890 Posted May 29, 2008 Author Report Share Posted May 29, 2008 not really lol but idc i prob wouldn't be able to find where it goes anyway lol but is that causing the problem? Quote Link to comment Share on other sites More sharing options...
ing-schu@online.no Posted May 29, 2008 Report Share Posted May 29, 2008 Vacuum hoses ending up in the middle of nowhere tends to cause problems, yes. Quote Link to comment Share on other sites More sharing options...
